garlic cleaning machine

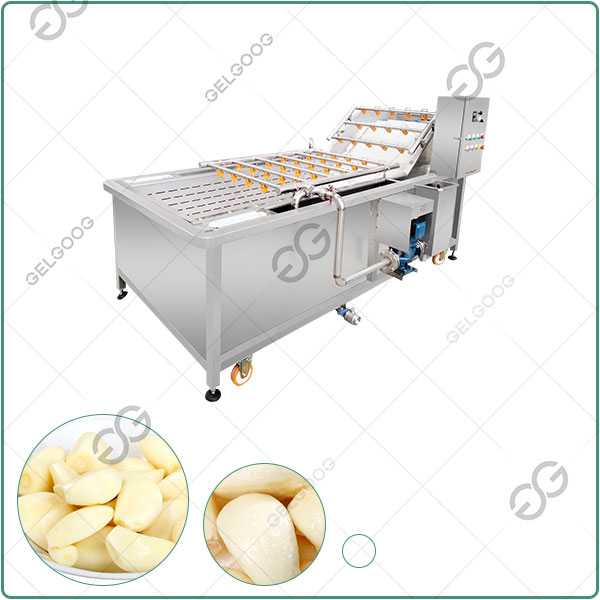

Bubble Garlic Cleaning Washing Machine for Factory Use

  • Capacity: 300-2000kg/h
  • Description:The cleaning machine adopts the principle of air bubble cleaning, which reduces the damage to garlic and the output can reach 2000kg/h.
Introduction

Garlic is an important seasoning crop. Whether it is used to make garlic slices, garlic sauce, garlic powder, or sold as a fresh product in supermarkets, cleaning is a very important step in the garlic processing process. Garlic cleaning is usually in the early stage of the entire processing process. Garlic cleaning machines are usually used to clean garlic after cloves, peeling or slicing.

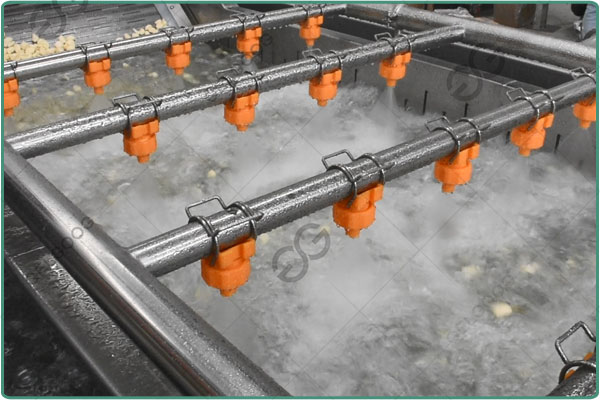

The bubble garlic washing machine is widely used in garlic processing factories. The machine uses the tumbling and impact force of bubbles continuously generated in the water to peel off the mud, impurities and loose skin attached to the surface of garlic. And because the impact of the bubbles is relatively gentle, it will not damage the garlic, thus ensuring that the garlic is intact.

garlic washing machine

Garlic Cleaning Machine Features:

1. Reasonable structure and stable operation: The garlic washing machine is made of food-grade stainless steel 304, which is corrosion-resistant and wear-resistant and meets food hygiene standards. The frame is stable, the equipment runs smoothly, and it is suitable for garlic of different sizes and shapes.

2. Multiple cleaning modes: The cleaning method combines bubble tumbling, water flow and brush assistance. By adjusting the water pump air volume and water flow speed, customized cleaning effects can be achieved.

3. Automatic circulation filtration system: The garlic cleaning machine has a built-in circulating water pump and filtering device. The mud and impurities generated during the cleaning process are separated in time through the filter net, ensuring the water quality is clean and can be continuously recycled, extending the water change cycle.

4. Easy operation and maintenance: The garlic washing machine is equipped with a PLC control system and a touch screen operation interface, which can be started or adjusted with one button, making it convenient for cleaning different batches of products.

5. Flexible production capacity and support for customization: According to customer needs, we provide a variety of models and specifications, with processing capacity ranging from 300 kg/hour to 2 tons/hour. It can be combined with garlic peeling machines, clove splitters, slicers and other equipment to form a complete automated garlic processing line.

Parameter

Model

Capacity

Size

Material

GG-XQ2500A

200-300KG

2725*1563*1328

stainless steel

GG-XQ3000A

300-500KG

3225*1563*1328

GG-XQ3500A

300-600KG

3725*1563*1328

GG-XQ4000A

500-1000KG

4225*1563*1328

GG-XQ5000A

1000-1500KG

5225*1563*1328

GG-XQ6000A

1000-2000kg

6225*1563*1328

GG-XQ8000A

1500-3000kg

8225*1563*1328
